Pantone Colour Printing

We explain everything you need to know about the Pantone colour system and when it might be the best option to choose for your custom box design

Pantone color printing

While computer screens display objects using the simplified RGB colour space by default, when you design for print, you must use either the CMYK colour space or the Pantone colour system so that your print colour reproduction is accurate and clear. For most purposes, the CMYK colour space is fine. But if you have specific or unusual colour needs — such as for a unique colour-branded logo or for specialty packaging solutions — then you may want to work with the Pantone system.

What Is the Pantone Colour System?

The Pantone colour system is a standardized colour reproduction system which was invented back in the 1950s by an advertising agent named Lawrence Herbet; and then formalized for commercial use almost a decade later, in the 1960s. It’s been used ever since across several industries that rely on accurate colour-matching, such as graphic design, the fashion and cosmetics industries, and, of course, high-end printing.

The big deal about the Pantone system is that it enables businesses to generate exact colour matches — and even create unique branded colours — which will replicate precisely regardless of the printing methods used to reproduce them. In the Pantone system, each colour has its own numerical code, known as a “PMS” number — for Pantone Matching System. The system makes it possible to guarantee perfect colour fidelity across all publicity, marketing, and packaging. The only caveat is that — as with any colour printing — there will always be slight variance based on the material substrate and surface coatings on which you’re printing.

When to Choose Pantone

While CMYK colour printing is the most commonly used, including for custom packaging solutions, several companies also choose Pantone colours for boxes and another packaging. Typically, they’ll use it for the logo if it was originally designed in Pantone and has colours that can’t easily be reproduced any other way. If your project demands extreme accuracy in colour reproduction, or if your brand and logo contain unique colours, then Pantone is a must.

The Pantone Colour Range

The Main Colours

The Pantone System contains 1, 867 solid colours, each assigned a unique three-number code followed by either “C” or “U” to indicate coated or uncoated paper.

Pantone Colour Chart - Solid Coated
Pantone Yellow C
Pantone Yellow C
Pantone 109 C
Pantone 109 C
Pantone 1235 C
Pantone 1235 C
Pantone 1375 C
Pantone 1375 C
Pantone 715 C
Pantone 715 C
Pantone 165 C
Pantone 165 C
Pantone Orange 021 C
Pantone Orange
021 C
Pantone 485 C
Pantone 485 C
Pantone 484 C
Pantone 484 C
Pantone 483 C
Pantone 483 C
Pantone Red 0331 C
Pantone Red
0331 C
Pantone 210 C
Pantone 210 C
Pantone 212 C
Pantone 212 C
Pantone Pink C
Pantone Pink C
Pantone 233 C
Pantone 233 C
Pantone 2405 C
Pantone 2405 C
Pantone Purple C
Pantone Purple C
Pantone 2602 C
Pantone 2602 C
Pantone 2597 C
Pantone 2597 C
Pantone 2617 C
Pantone 2617 C
Pantone 635 C
Pantone 635 C
Pantone Blue 0821 C
Pantone Blue
0821 C
Pantone Medium Blue C
Pantone Medium
Blue C
Pantone Dark Blue C
Pantone Dark
Blue C
Pantone 295 C
Pantone 295 C
Pantone 3135 C
Pantone 3135 C
Pantone 7710 C
Pantone 7710 C
Pantone 319 C
Pantone 319 C
Pantone 333 C
Pantone 333 C
Pantone Green 0921 C
Pantone Green
0921 C
Pantone Black C
Pantone Black C
Pantone Cool Gray 11 C
Pantone Cool Gray
11 C
Pantone Cool Gray 8 C
Pantone Cool Gray
8 C
Pantone Cool Gray 5 C
Pantone Cool Gray
5 C
Pantone Cool Gray 2 C
Pantone Cool Gray
2 C
Pantone Colour Chart - Solid Uncoated
Pantone Yellow U
Pantone Yellow U
Pantone 109 U
Pantone 109 U
Pantone 1235 U
Pantone 1235 U
Pantone 1375 U
Pantone 1375 U
Pantone 715 U
Pantone 715 U
Pantone 165 U
Pantone 165 U
Pantone Orange 021 U
Pantone Orange
021 U
Pantone 485 U
Pantone 485 U
Pantone 484 U
Pantone 484 U
Pantone 483 U
Pantone 483 U
Pantone Red 0331 U
Pantone Red
0331 U
Pantone 210 U
Pantone 210 U
Pantone 212 U
Pantone 212 U
Pantone Pink U
Pantone Pink U
Pantone 233 U
Pantone 233 U
Pantone 2405 U
Pantone 2405 U
Pantone Purple U
Pantone Purple U
Pantone 2602 U
Pantone 2602 U
Pantone 2597 U
Pantone 2597 U
Pantone 2617 U
Pantone 2617 U
Pantone 635 U
Pantone 635 U
Pantone Blue 0821 U
Pantone Blue
0821 U
Pantone Medium Blue U
Pantone Medium
Blue U
Pantone Dark Blue U
Pantone Dark
Blue U
Pantone 295 U
Pantone 295 U
Pantone 3135 U
Pantone 3135 U
Pantone 7710 U
Pantone 7710 U
Pantone 319 U
Pantone 319 U
Pantone 333 U
Pantone 333 U
Pantone Green 0921 U
Pantone Green
0921 U
Pantone Black U
Pantone Black U
Pantone Cool Gray 11 U
Pantone Cool Gray
11 U
Pantone Cool Gray 8 U
Pantone Cool Gray
8 U
Pantone Cool Gray 5 U
Pantone Cool Gray
5 U
Pantone Cool Gray 2 U
Pantone Cool Gray
2 U

Metallic Colours

In addition to the main colours, a range of metallic shades are also available. You can recognize a metallic code — which may have three or four numbers — as it begins with an 8 and always ends with a “C” as there are no uncoated paper versions. There’s also a range of premium metallics indicated by a five-number code. Pantone metallics are a popular choice in custom box design.

Pantone 871 C
Pantone 871 C
Pantone 877 C
Pantone 877 C
Pantone 8023 C
Pantone 8023 C
Pantone 8063 C
Pantone 8063 C
Pantone 8083 C
Pantone 8083 C
Pantone 8123 C
Pantone 8123 C
Pantone 8143 C
Pantone 8143 C
Pantone 8163 C
Pantone 8163 C
Pantone 8183 C
Pantone 8183 C
Pantone 8203 C
Pantone 8203 C
Pantone 8263 C
Pantone 8263 C
Pantone 8283 C
Pantone 8283 C
Pantone 8303 C
Pantone 8303 C
Pantone 8342 C
Pantone 8342 C
Pantone 8363 C
Pantone 8363 C
Pantone 8642 C
Pantone 8642 C
Pantone 8623 C
Pantone 8623 C
Pantone 8583 C
Pantone 8583 C
Pantone 8543 C
Pantone 8543 C
Pantone 8523 C
Pantone 8523 C

Pastel and Neon Colours

Pastel shades and neon tones have three or four number codes starting with “9” and are available in both coated and uncoated versions.

Pantone Colour Chart - Pastels and Neons Coated
Pantone 901 C
Pantone 901 C
Pantone 801 C
Pantone 801 C
Pantone 902 C
Pantone 902 C
Pantone 802 C
Pantone 802 C
Pantone 803 C
Pantone 803 C
Pantone 804 C
Pantone 804 C
Pantone 805 C
Pantone 805 C
Pantone 806 C
Pantone 806 C
Pantone 807 C
Pantone 807 C
Pantone 814 C
Pantone 814 C
Pantone Blue 0821 C
Pantone Blue
0821 C
Pantone 9460 C
Pantone 9460 C
Pantone Green 0921 C
Pantone Green
0921 C
Pantone 9520 C
Pantone 9520 C
Pantone Yellow 0131 C
Pantone Yellow
0131 C
Pantone 9160 C
Pantone 9160 C
Pantone 9320 C
Pantone 9320 C
Pantone Magenta 0521 C
Pantone Magenta
0521 C
Pantone Red 0331 C
Pantone Red
0331 C
Pantone Violet 0631 C
Pantone Violet
0631 C
Pantone Colour Chart - Pastels and Neons Uncoated
Pantone 901 U
Pantone 901 U
Pantone 801 U
Pantone 801 U
Pantone 902 U
Pantone 902 U
Pantone 802 U
Pantone 802 U
Pantone 803 U
Pantone 803 U
Pantone 804 U
Pantone 804 U
Pantone 805 U
Pantone 805 U
Pantone 806 U
Pantone 806 U
Pantone 807 U
Pantone 807 U
Pantone 814 U
Pantone 814 U
Pantone Blue 0821 U
Pantone Blue
0821 U
Pantone 9460 U
Pantone 9460 U
Pantone Green 0921 U
Pantone Green
0921 U
Pantone 9520 U
Pantone 9520 U
Pantone Yellow 0131 U
Pantone Yellow
0131 U
Pantone 9160 U
Pantone 9160 U
Pantone 9320 U
Pantone 9320 U
Pantone Magenta 0521 U
Pantone Magenta
0521 U
Pantone Red 0331 U
Pantone Red
0331 U
Pantone Violet 0631 U
Pantone Violet
0631 U

White Ink

If your choice of packaging paper is brown kraft or dark-coloured paper, we can also use white ink. And if you want to print images on the surface of any coloured paper, we need to print the design or text in white ink first, and then apply the images over the top.

The Pros and Cons of the Pantone Colour System

While, as we said at the outset, CMYK colour printing is good in most cases, one advantage of using the Pantone colour matching system is that the colours are always perfectly mixed. So, you know that your logo, say, or branded colours will be consistent from one print job to the next.

Pantone colour printing is also called “spot colour printing”. The CMYK printing process creates the colour by building up layers with different coloured “dots”. Pantone—spot colour printing– uses ready-mixed ink to print the true colours directly to the substrate. So, Pantone colour printing gives a more “solid” look than CMYK printing.

Setting up your design to use a “spot colour” in the Pantone range can be an effective and economical way to enhance your branding without the added expense of a full Pantone print job. With a spot colour, the ink is applied just to a specific area, to highlight it and make it stand out from the background colours or artwork.

Because Pantone colour printing uses ready-mixed ink, it affords highly consistent colour reproduction throughout the process and on all surfaces. For packaging products, keeping the same colour can be vitally important for both for quality and branding consistency. So, the main colours in your packaging should ideally be printed with Pantone colours.

On the downside, a full pantone print on your custom packaging will be more costly than creating it using the CMYK colour system. It will also take longer to produce. In many cases, we can get very close to most Pantone colours using the CMYK system, so if you have a tight budget, that would be better for you.

Pantone color printing

Undecided Between CMYK and Pantone?

It’s not always easy to weigh up these pros and cons to come to decision for your product. With Pantone, you’re guaranteed perfect colour matching, but you’ll pay a premium for that level of accuracy, and it will take longer to turn the job around. With CMYK, you can’t 100% guarantee the faithfulness of the colour reproduction to your original design — although for most purposes it will be close enough to make little difference — but it costs less and we can offer a faster turnaround. if you have any doubts, get in touch. One of our experts will be happy to talk through your needs and recommend the best option for you based on your project and your budget.

How to Prepare Artwork Using the Pantone Colour System

But if you are going to use Pantone in your design, make sure to follow these simple steps to make generating your files as straightforward as possible. In this example, we’ll refer to Adobe Illustrator as it’s the best software available for this kind of work, in our opinion. But the fundamentals are similar in alternative applications, so it should still be helpful.

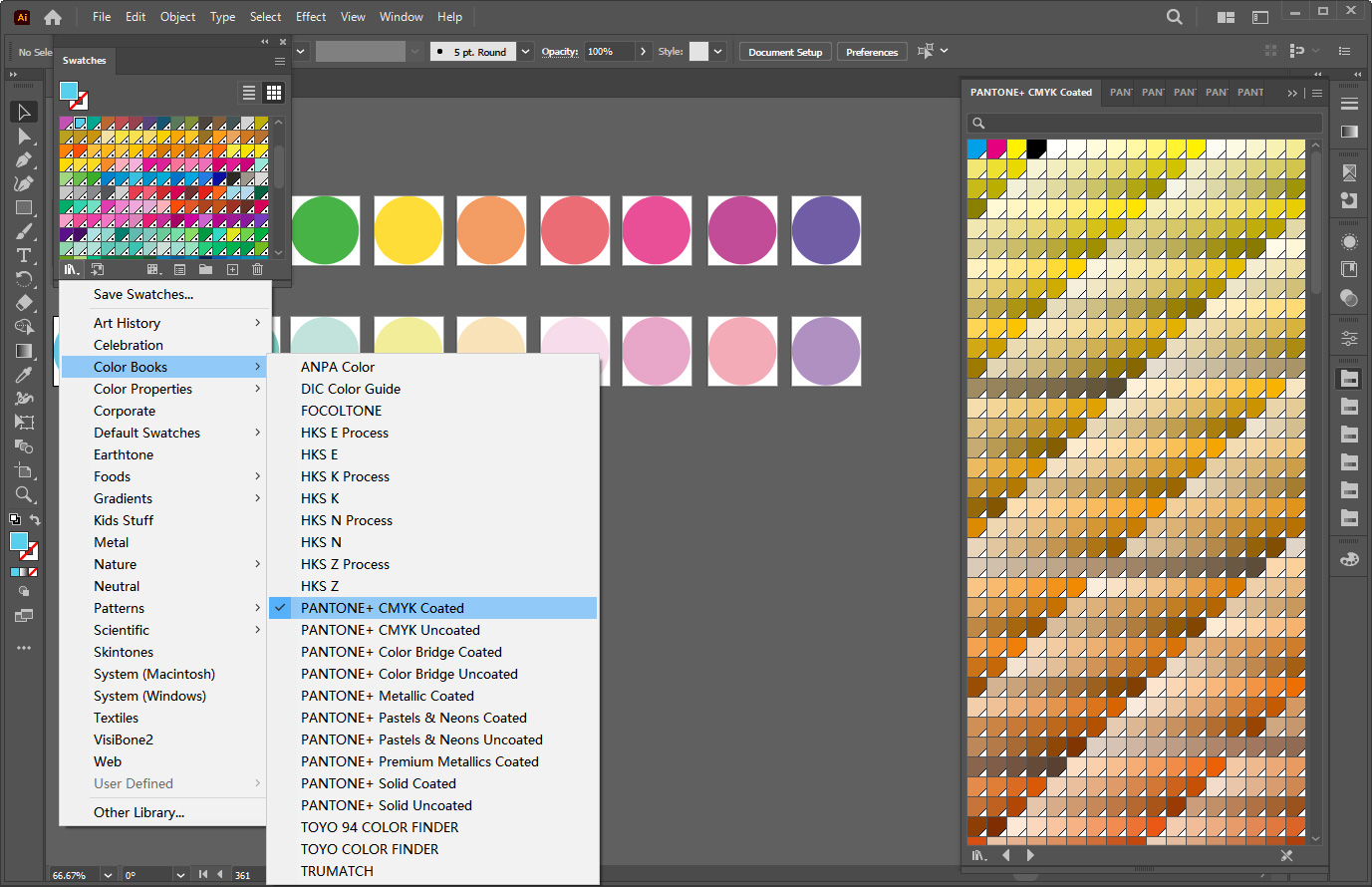

Creating a Pantone Colour Design in Adobe Illustrator

The first step is to open the Swatches palette as you will need it to generate Pantone colours in your artwork. Go to >Window< then >Swatches< then click on the palette menu. Click >Open Swatch Library< and >Colour Books< then select the Pantone book you need; for example, Solid Coated or Solid Uncoated.

Creating a Pantone Color Design in Adobe Illustrator

Now you should see the Pantone colour book you’ve chosen. From here you can create your colour palette. You may already know the codes for the colours you want to use, in which case just enter them in search and click them into the palette until you have transferred them all. If you don’t have codes, browse the available colours, click on any swatch you want to include, and it will transfer to the palette.

Once you’ve generated your palette, you can apply the colour choices to your vector graphics. For this, you’ll need to use the Selection Tool. Position it over the vector to which you want to apply the colour, and then click the appropriate swatch from the palette. Just keep going until you’ve completely coloured your work.

Once you’re done, you can export your files as high-quality PDFs. If you’ve been using one of our templates or a custom template we’ve made for you, remember to keep it in a separate layer and to leave that layer at the top.
